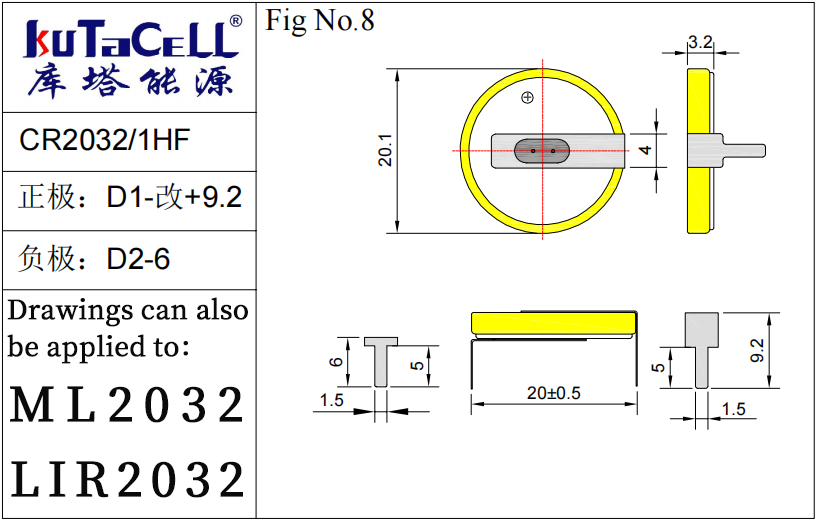

Model:(8)CR2032/1HF
Nominal: 3.0V
NominalCapacity: 23mAh
Maximum continuous current: 5mA
Maximum pulse current: 15mA
Diameter: 20.0mm
Thickness: 3.2mm
Weight:3.2g
Various types of plans:
· PC pin (horizontal)/(vertical)
· SMT (SMD) Installation
· Welding strips, wires
· Cable with connector
· Customizable design shapes and dimensions
· Since we have already produced a large quantity of battery terminals to meet the unique designs of our customers, we have only listed a very limited selection here for your reference.
· Please contact us for more detailed information about the project you specified,
